The Sahara that started it all.
We built the Sahara X1 because we couldn’t stand to see so many materials, and so much budget, wasted on bags of dull mulch. Two decades later, our customers continue to choose the X1 for its footprint and output.
Equipment
SAHARA® X1

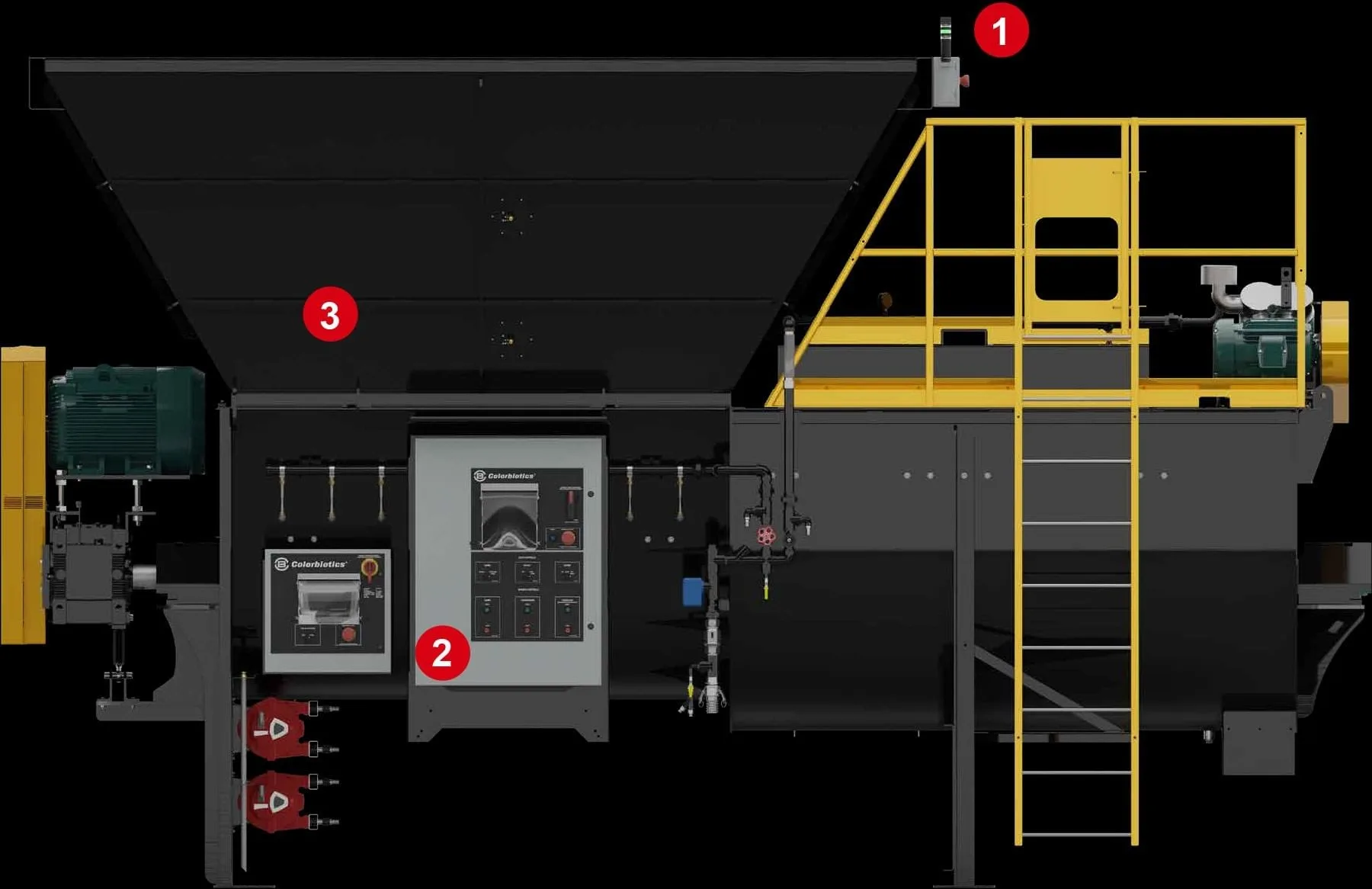

The X1
1. Active Start-up Monitoring
This remote e-stop box on the side of the hopper also sounds an alarm and flashes warning lights before the system starts up. There’s a trusty e-stop button on the control panel, too.
2. GEM
GEM is a smart volumetric system that captures ultrasonic measurements at 5-second intervals to give you complete, convenient control over your operation. From just about anywhere in the world.
3. The Mixing Chamber
The mixing chamber is engineered to take the best colorant money can buy and make even more out of every ounce. Keep scrolling for the three keys to that consistency and efficiency.
Retention time:
Thanks to the dual-chamber design of the mixing chamber, each piece of mulch spends the same amount of time inside. That kind of consistency is why your piles of product will be the same color across hours, days weeks or even seasons.
Bilateral agitation:
This is what we call our patented “push-and-pull” process. Basically, the shaft turns in one constant direction to conserve energy, while our combination of blades throws the mulch in all different directions to maximize each piece’s exposure.
Atomization nozzles:
As soon as the colorant and water shoot out of these nozzles, the stream is knifed into the smallest possible particles. It’s the otherwise impossible size of those particles that provides such complete coverage on every last piece.
SPECS
Technical Data
| Output: | 125 to 175 cubic yards per hour |
| Water: | Up to 45 gallons of water per minute |
| Power: | 175 amps @ 460V 3PH |
| Motors: | Electric (up to 75 HP) |
Measurements
| Height: | 13 ft 5 in |
| Width: | 7 ft 9 in |
| Length: | 20 ft 5 in |
| Infeed: | 11 ft |
| Outfeed: | 2 ft 5 in |
As simple as push to start.
If you can punch the numbers on a microwave, you can color mulch with GEM Studio. This do-it-all interface puts operators one tap away from the perfect recipe, right there on the side of the machine. Or via any device, anywhere.
